Generic security concept

Defense-in-depth design of automation systems is an important IEC 62443 process measure to achieve reliable security. The result is a generic layered architecture that leads step-by-step to a fully segmented network layer structure that describes the PLCnext Technology security architecture and the security use cases in the so-called security context.
The security context results from the combination of technological and organizational measures required by the IEC 62443 standard and the philosophy of a holistic security approach.

Defense-in-depth concept

A generic defense in depth design results in three layers or zones:

Perimeter security
Perimeters are the outer boundaries of the network,
protected by physical measures such as fences, doors, physical access controls, etc.
Network security
This layer contains the enterprise or office zone and a service management zone, protected by well-known IT security concepts.
System integrity
This layer contains OT devices and applications,
to be protected by IEC 62443 concepts.

PLCnext Technology security context

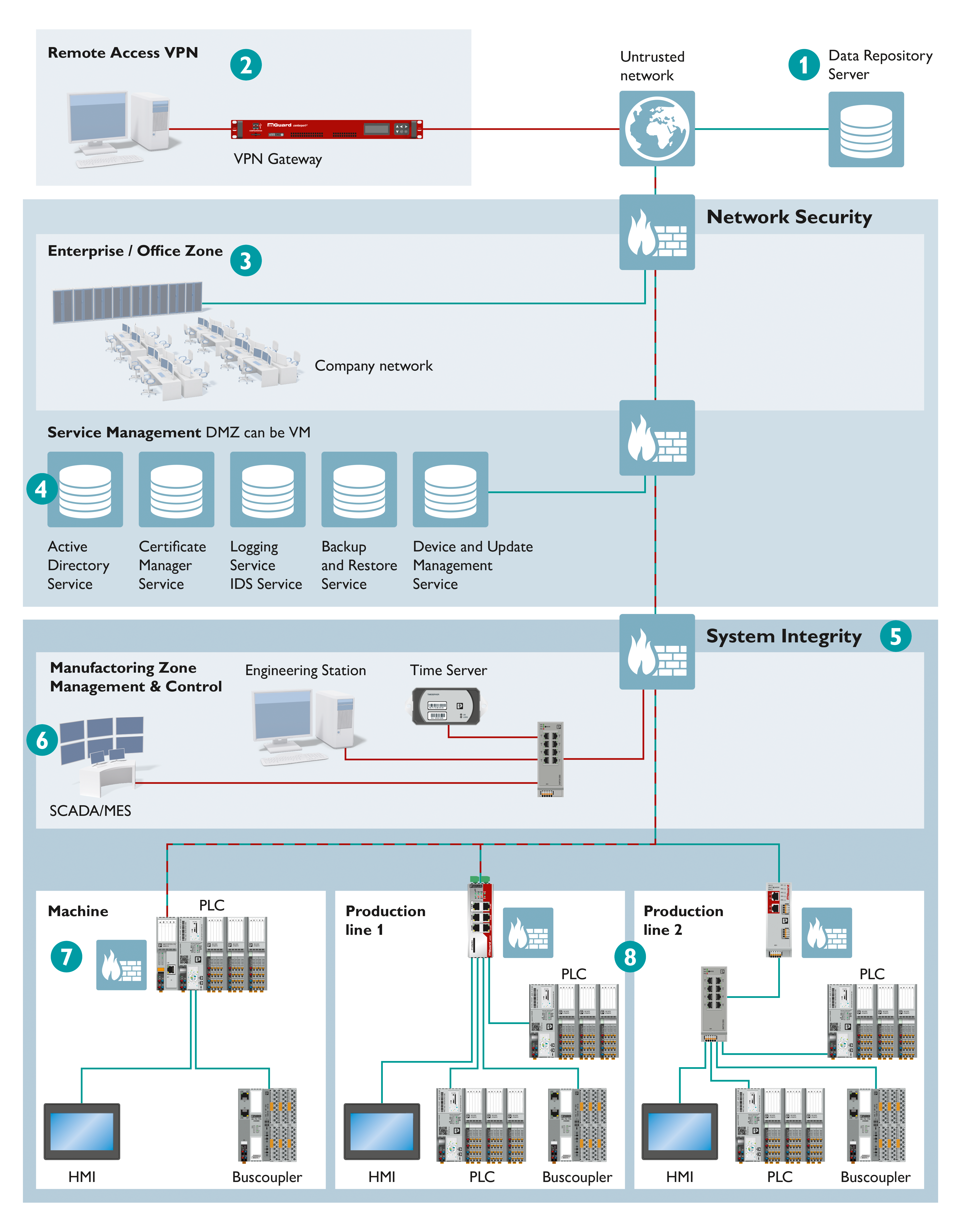

The following figure shows the PLCnext Technology generic security context (zones and conduits) focussing on the OT security based on IEC 62443-4-2 requirements.

Blue-green connections (―) represent security mechanisms (e.g. TLS / HTTPS).
Red connections (―)represent virtual private networks (VPNs).

The different layers (zones and conduits) are marked by numbers:

No.	Description	Details
1	Data Repository Server	Provides data for patch management/asset management.
2	VPN Server	Remote maintenance access via VPN
3	Enterprise / Office zone	Factory IT; ERP (Enterprise Resource Planning) systems; production control systems. Protected by firewall
4	Service management zone	This zone can be considered as a Demilitarized Zone (DMZ) as it decouples the ICS networks (zones 5 to 7) from the external network by strictly controlling the information flow. Any communication between the external and ICS networks must pass this zone. Implements central user management, patch/update management, and logging. It contains the following infrastructure: Active Directory/RADIUS server for authentication purposes Firewall or VPN component (implemented, for example as jump host) handles the communication with the other zones (conduits).
5	System integrity	Factory OT, consisting of zones 6 to 8
6	Manufacturing zone	Management, monitoring and controlling of the main process and the sub-process. Implements SCADA, time synchronization and engineering. This zone is composed as follows: Control center (SCADA = Supervisory Control and Data Acquisition) NTP server which provides a GPS-based time base to the other devices involved Ethernet switch Engineering system (such as PLCnext Engineer) Firewall which handles the communication with the other zones (conduits)
7	Machine level Main process	Collects and processes of data from the process and the sub-process. This zone is composed as follows: PLCnext Control with I/O devices The controller integrates firewall and VPN server handling the communication with the other zones (conduits). HMI for controlling and visualization purposes Bus couplers
8	Production line level Sub-process	Performs a specific automation function in a peripheral unit (remote station). This zone is composed as follows: PLCnext Control, each with distributed I/O devices connected to the field bus HMI for controlling and visualization purposes. Ethernet switch mGuard VPN integrates firewall and/or VPN server handling the communication with the other zones (conduits) Bus couplers

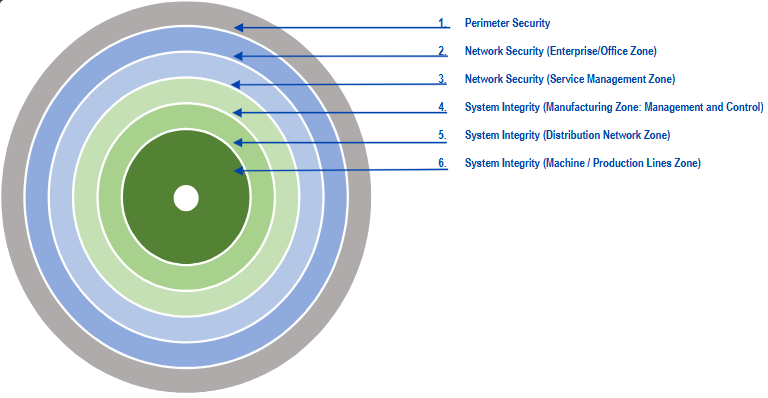

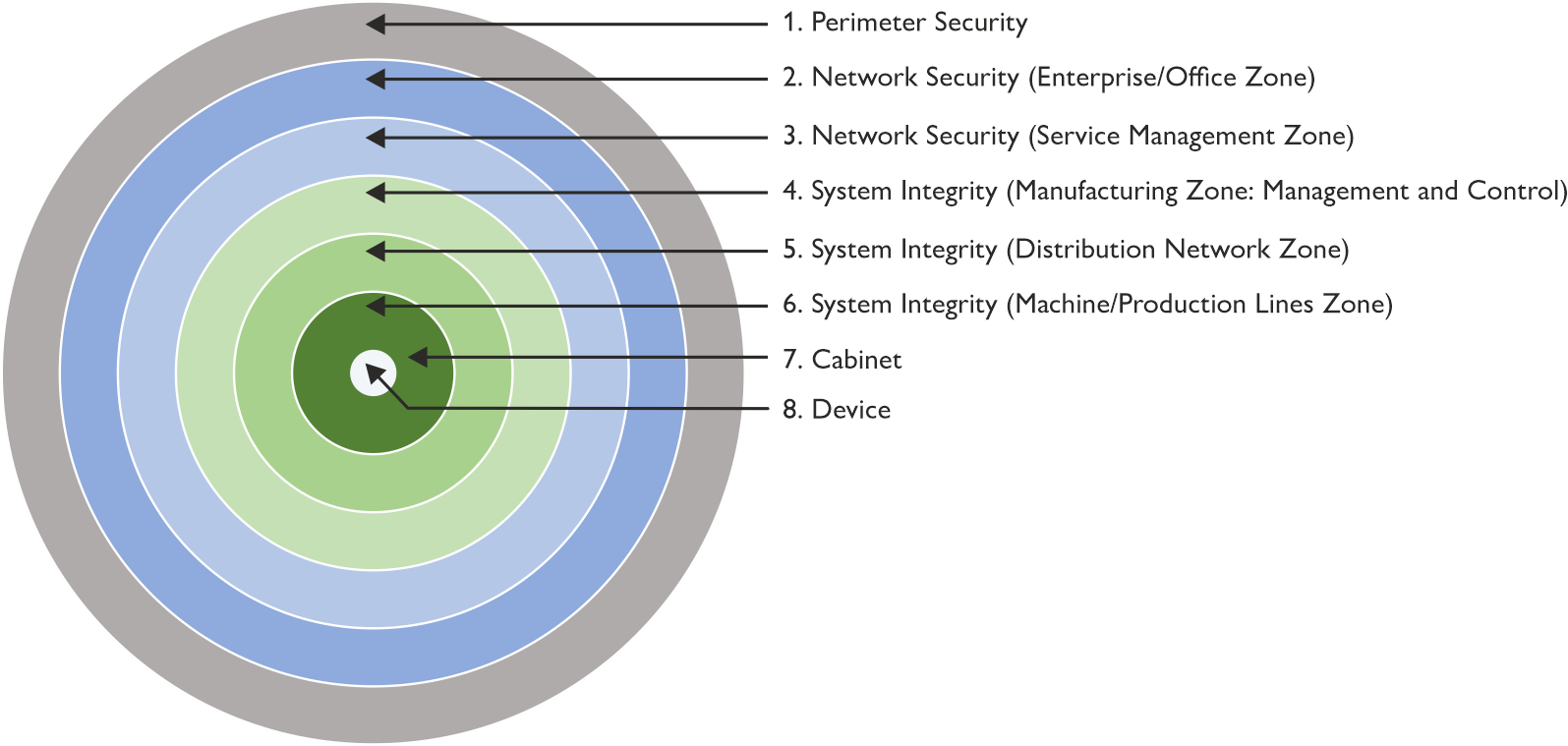

The PLCnext Technology security context is based on the Defense-in-Depth concept providing six security layers (zones/conduits):

Perimeter Security - the outer layer

Access protection for the enterprise network by the following measures:

Physical isolation
Digital isolation by network segmentation
Logical access controls
Use of specifically configured firewalls. The specified firewall must correspond to the identified threats and vulnerabilities.
VPN or other security measures for remote access
Documentation of all remote access points

Network Security layers

Protection of the factory network composed of the enterprise network zone and the service management zone which is considered as Demilitarized Zone (DMZ). Possible measures are:

Identifying all network devices and hosts
Analysis of protocols/traffic
Auditing of wireless communication/traffic
Analysis of switch/router configurations

Measures in the DMZ:

OS check for vulnerabilities
OS patch management
USB or removable devices prevention from use inside control room
Foreign computers restricted from connecting

System Integrity - the inner layers

Measures for SCADA applications:

Monitored network for clear text transfer and use of encryption
Ensured use of individual user accounts
Restricted access to desktop

Measures for control subnetworks layer at machine/production line level (main process and subprocesses):

Wired vs. wireless communications
Ethernet vs. serial communications
Capture traffic on Ethernet connections

Measures for field controllers:

Ethernet vs. serial connected devices
Ethernet devices tested in lab for vulnerabilities
Removed vendor default passwords

Further Information:
Details on the possible measures can be found in the Security measures topic.
